SOFT MATERIALS HANDLING

SPOOLING

Ideal solution for the production of small format reels of bulky nonwovens.

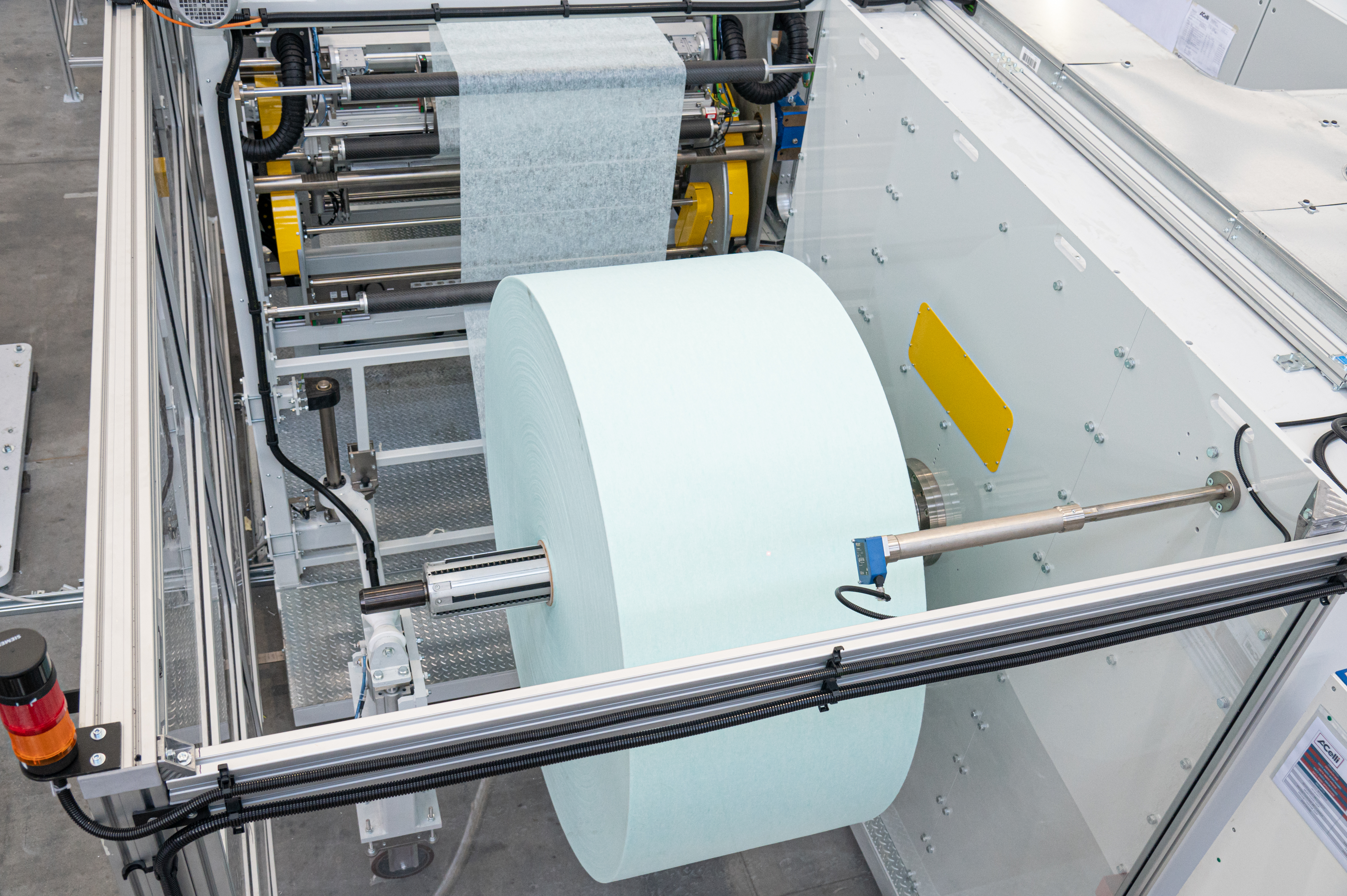

Linea Spooling A.Celli_Air Through Bonded_1 - A.Celli Air Through Bonded Spooling Line_1

Ideal solution for rewinding soft and small-format materials.

Request Info
Technical Details
  • Master Roll width: 400-1200 mm
  • Master Roll diameter: 1800-2000 mm
  • Finished reel width: 400-850 mm
  • Finished reel diameter: 1200 mm
  • Max. speed: 800 m/min
  • Slitting width: 35-140 mm
  • Max. No of Spooling heads: 12
Main Features
  • Dual shafts unwind stand
  • Ultrasonic splicing and ironing system
  • Low Inertia Carbon Fiber Idle Rolls
  • Automatic Web Guiding System
  • Shear tangential slitting system
  • Tension and Nip control with taper function
Options
  • Web accumulation system
  • Trim & dust suction system
  • Stripe guiding and width measuring system
  • Automatic stripe cross-cutting system
  • Master roll and finished reel handling system
  • Defect Management System (DMS)
Linea Spooling A.Celli - A.Celli Spooling Line

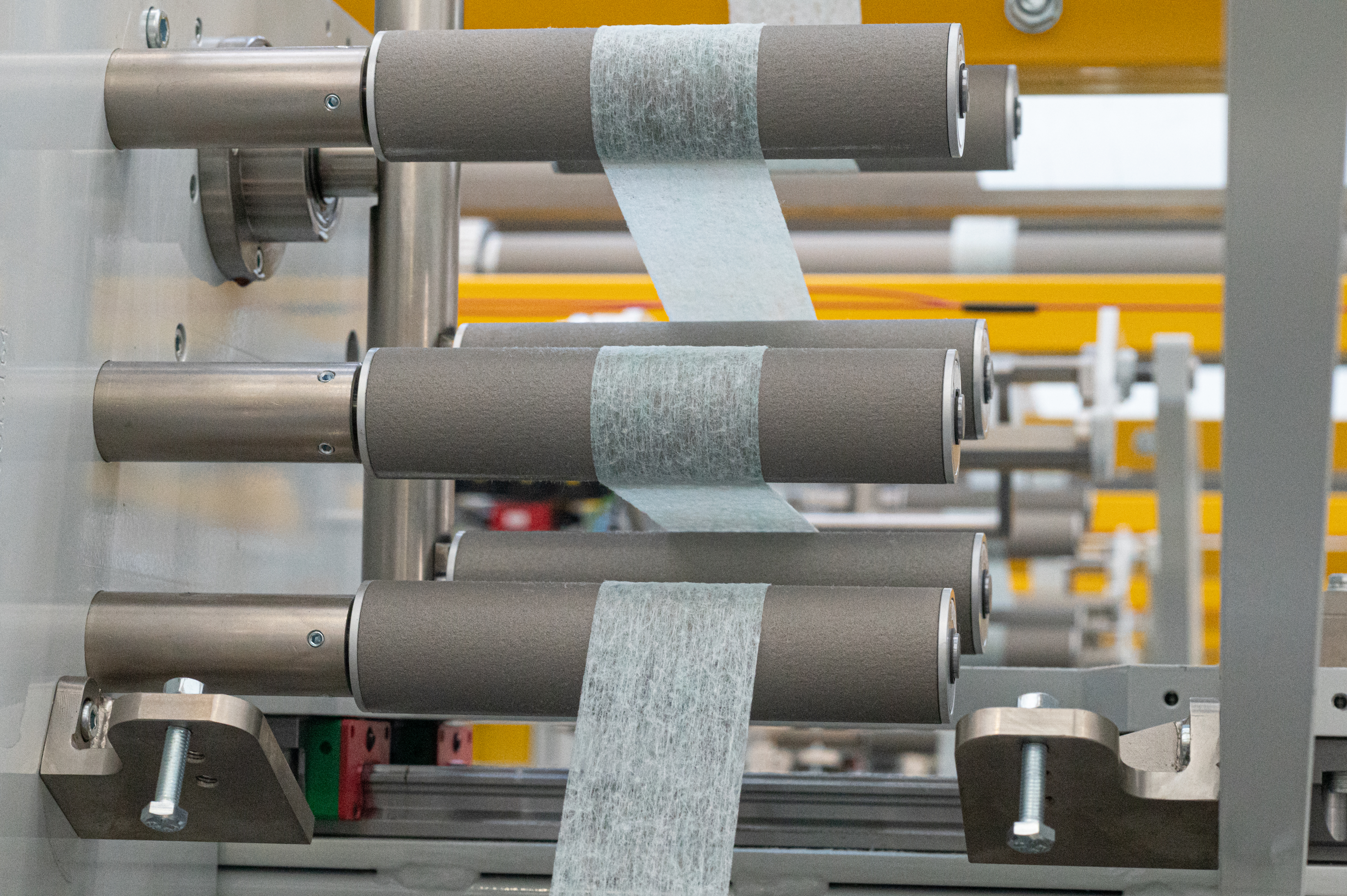

Linea Spooling A.Celli_Air Through Bonded_2 - A.Celli Air Through Bonded Spooling Line_2

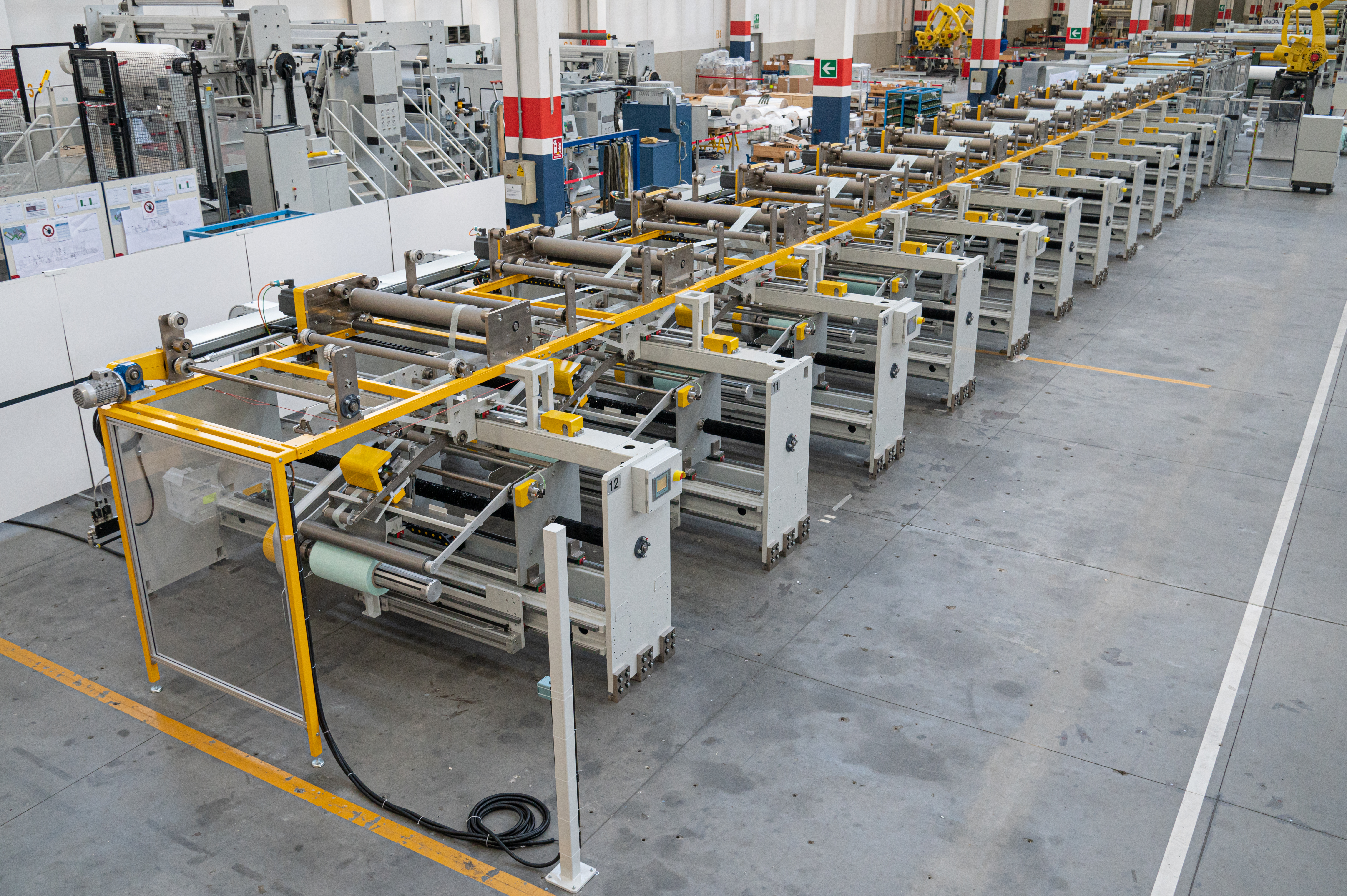

A.Celli Air Through Bonded Spooling Line_3

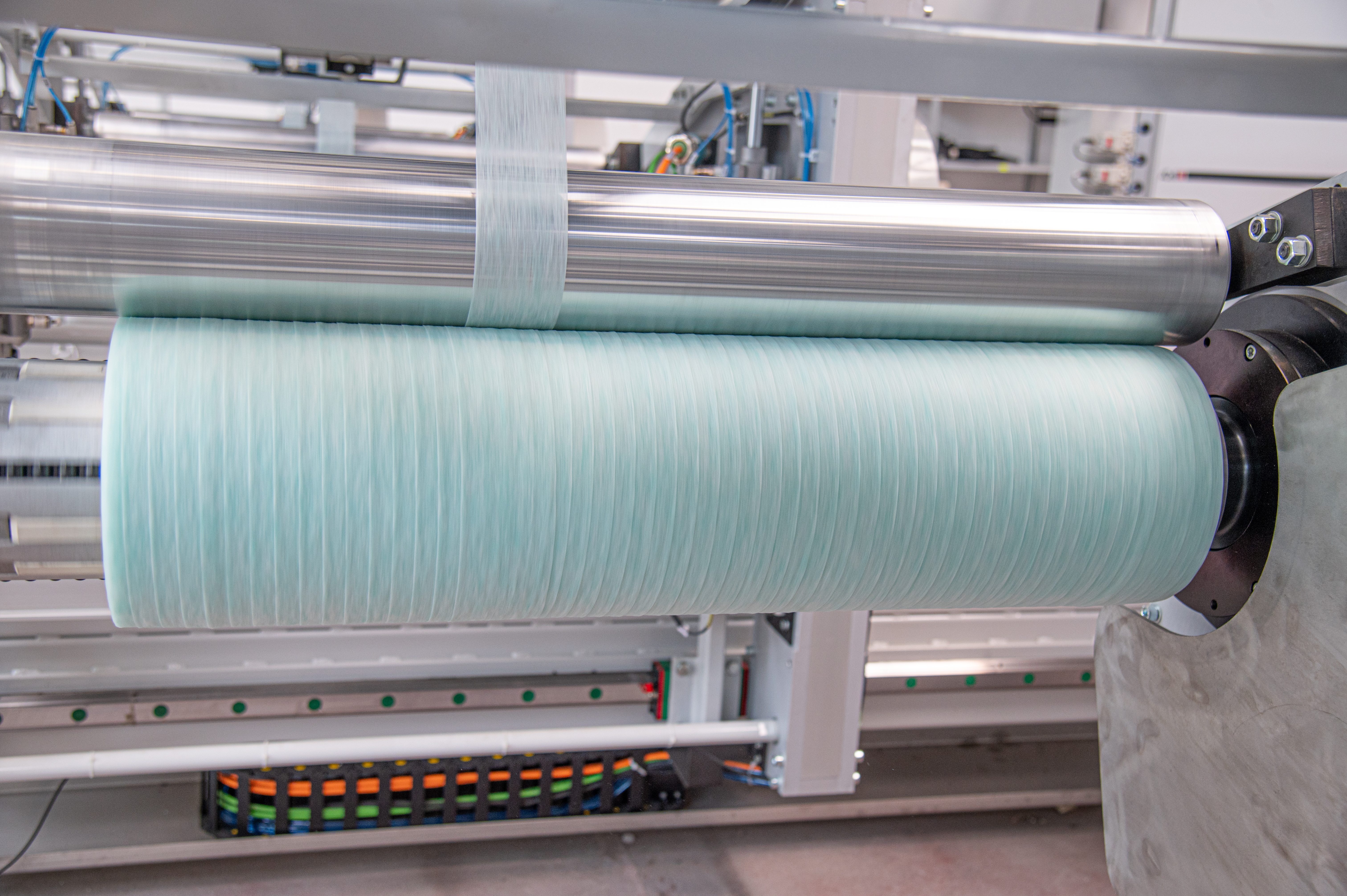

Linea Spooling A.Celli_Highloft
