NONWOVENS WINDERS

NEXUS

High throughput in-line slitting winder, designed to minimize waste.

In-line slitting winder designed for high-speed production lines and to minimize waste.

Request Info

Technical Details

Basis weight range: 10-150 g/m2*
Max. web width: 3600 mm
Max. finished reel diameter: 1500 mm**
Max. operating speed: 800 m/min**
Minimum slitting width: 100 mm
Shaft diameter: 3”; 6”; 6 3/4
Design: Surface driven

Main Features

Automatic Tension, Nip and Torque control with taper function
Double bowed spreader roller to prevent possible wrinkles/folds during winding
Motorized supporting roll (SUS) with horizontal carriages
Motorized S-wrap with press roll
Shear tangential slitting system
Automatic cross cutting with axial control

Options

A.Celli SLITTOMATIC system for the automatic positioning of slitting units
Defect Management System (DMS)
Trim and dust suction system
Finished reel & winding shaft handling system

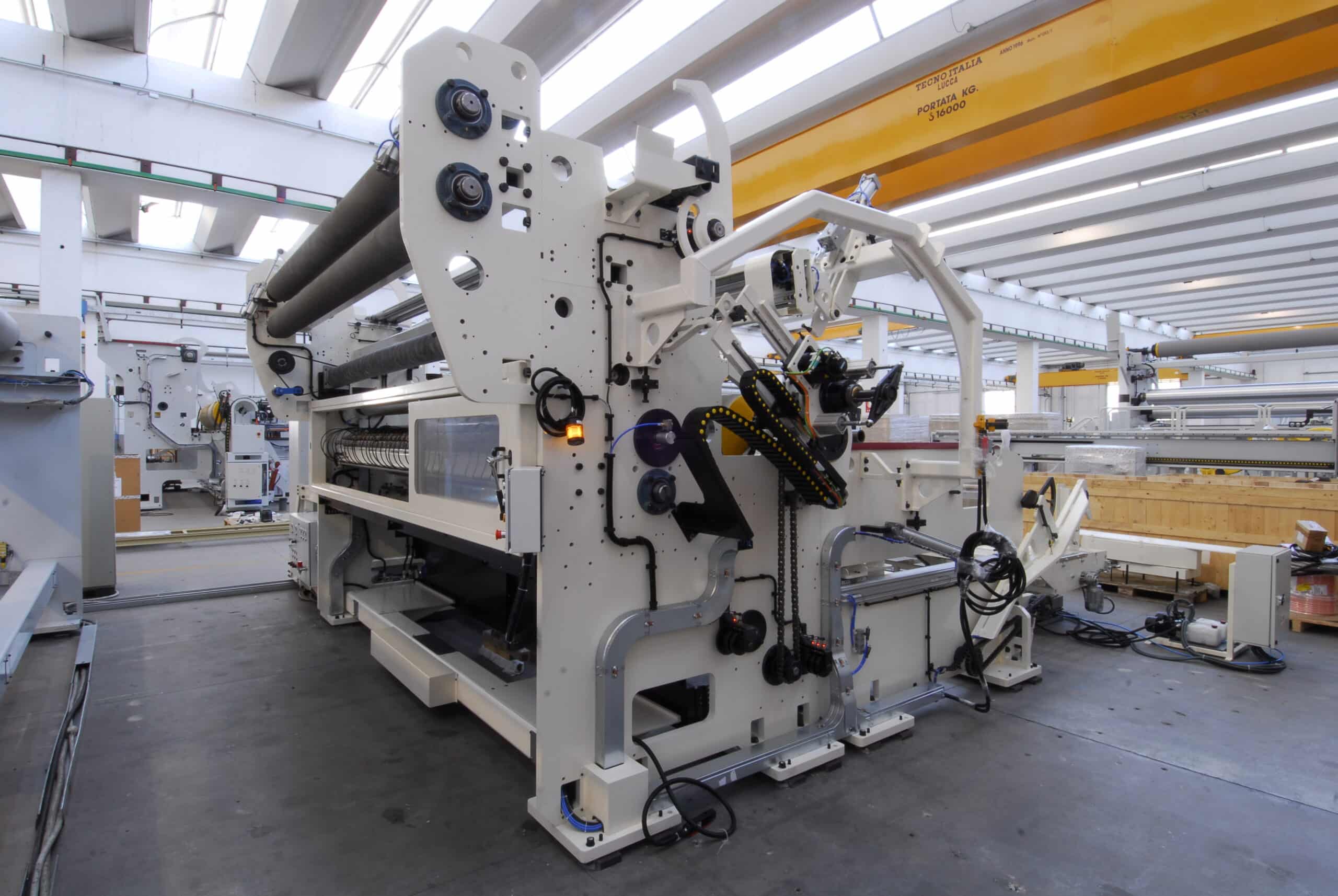

Avvolgitore Nonwoven Taglio in Linea A.Celli NEXUS_2

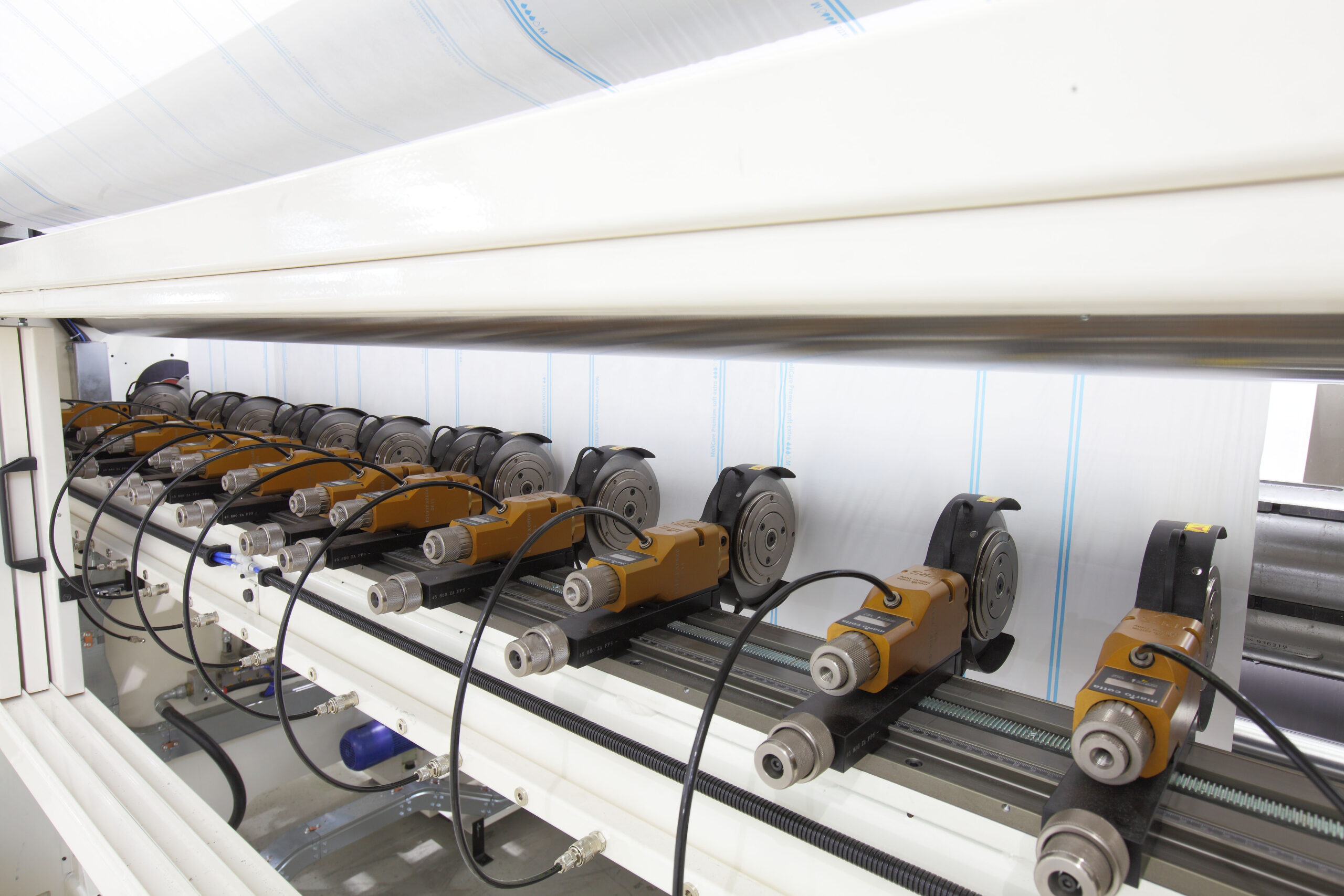

Avvolgitore Nonwoven Taglio in Linea A.Celli NEXUS_Gruppo Taglio
